H1: Endoscopy Medical Cart Integration: An OEM Buyer’s Checklist
An endoscopy medical cart should be specified around the complete equipment stack, not selected from a generic cart image. A quote-ready OEM brief identifies every device, monitor, shelf and accessory; records dimensions, mass, interfaces, cables, airflow and service access; defines the travel route and cleaning process; and sets acceptance criteria for a configured sample.
CRF has a verified four-caster portable endoscope medical cart in its live catalog. That establishes a real product direction, but it does not prove compatibility with a particular endoscopy system or procedure. The buyer, device owner and responsible technical teams must approve the final configuration against drawings, device instructions and a sample.
What Is an Endoscopy Medical Cart?
An endoscopy medical cart is a mobile support structure used to organize project-defined imaging, display and accessory equipment. Depending on the system, the cart may need several equipment levels, a monitor support, accessory storage, cable routing, power-component space, handles and braking casters.
The cart is not the endoscopy system itself. Equipment, software, instruments, consumables and clinical workflow remain separate unless they are explicitly listed in the approved quotation. Avoid treating a bare cart as evidence of a complete or procedure-ready system.

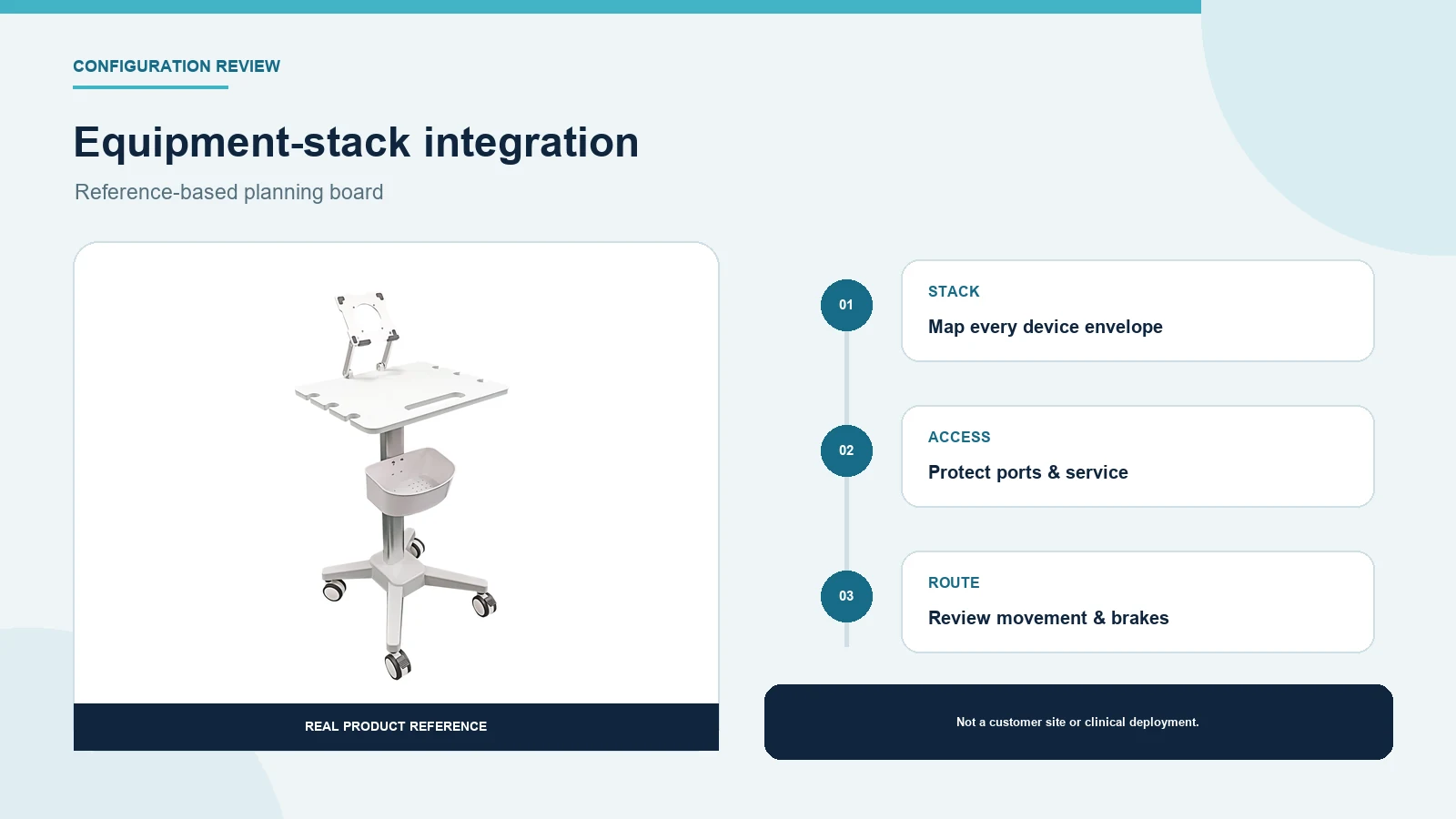

Freeze the Equipment Stack Before Designing the Cart
Create a controlled equipment schedule
List every installed item by manufacturer, model and drawing revision. Include the main processor or console, display, light source or other project equipment only when those items actually belong to the intended configuration. For each item, record:
- maximum width, depth and height;
- mass and intended shelf position;
- mounting or foot geometry;
- controls, ports and ventilation openings;
- service panels and removal direction;
- connector protrusion and cable bend space; and
- operating and transport states.
A family name is not enough. Two units sold for similar applications may have different footprints, vent locations and connector access.
Map the loaded arrangement
Create front, side and top views of the configured stack. Show each equipment envelope, shelf, monitor, basket, handle and cable channel. Record where the load sits rather than providing only a total mass. The responsible engineering team should assess the configured arrangement and define any required verification.
Protect access and airflow
Mark the controls users need to reach and the panels technicians must open. Provide device instructions for ventilation clearances and permitted orientation. Do not assume an open shelf automatically provides adequate cooling, and do not publish a thermal-performance claim without project evidence.
Choose Shelves and Interfaces Deliberately
Platform support versus fixed interface
A device may sit on a platform with agreed retention features or attach through a dedicated interface. The RFQ should define contact surfaces, hole patterns, fasteners, tolerances, anti-shift provisions and removal requirements. Terms such as “universal” should be avoided unless the supported range is stated and verified.
Set usable shelf dimensions
Specify the usable—not merely external—width and depth of every level. Include cable clearance behind equipment, hand clearance for removal and any lip or retention geometry. Check whether an opened panel, filter or connector can be serviced without removing another device.
Review monitor integration separately
For a monitor support, provide the display model, interface pattern, mass, orientation, viewing adjustment, cable route and locked transport condition. Define permitted rotation or tilt ranges and the clearances around adjacent equipment. A monitor-arm description alone does not confirm fit.
Plan Cables, Power Components and Service Loops
Build a cable schedule with endpoints, connector sizes, route, practical bend space and movement during adjustment. Keep cables away from pinch points, sharp edges, caster paths, hot surfaces and user grips. Identify which cables must be replaced without dismantling the stack.
If the project includes a power strip, isolation component, battery, charger or power supply, list it as an independent item with dimensions, mass, heat or airflow needs, attachment method and access requirements. Qualified parties must define electrical integration and target-market responsibilities. The cart does not inherit equipment approvals automatically.
Compare Base, Casters and Route Requirements
CRF’s verified reference product has a four-caster aluminum-alloy base. Wheel count and catalog terminology do not establish performance by themselves. Review the loaded configuration against the real route.
| Review input | Information to provide | Procurement purpose |
|---|---|---|
| Overall footprint | Maximum configured width and depth | Checks room, doorway and storage fit |
| Base geometry | Support footprint and obstruction zones | Relates equipment arrangement to the mobile structure |
| Casters and brakes | Required diameter, material direction and braking interaction | Defines a reviewable mobility specification |
| Route | Thresholds, ramps, elevators, turns and floor transitions | Exposes clearance and movement constraints |
| Transport state | Monitor, cables, accessories and equipment positions | Defines what is actually moved |
| Parking area | Bay dimensions and nearby obstructions | Confirms storage access |
Use objective acceptance criteria agreed for the project. Words such as “silent,” “stable” or “smooth” are not substitutes for a defined method and pass/fail threshold.
Address Cleaning and Contamination Controls
Provide the cleaning agents, concentrations, contact times and process used by the intended organization. Ask the supplier to review disclosed cart materials, finishes, joints and removable parts against that process. Device-specific cleaning remains governed by the relevant instructions.
The physical layout should allow intended surfaces to be reached. Identify joints, cable clusters, under-shelf areas and equipment interfaces that could be difficult to access. If the workflow requires separation between items, define the zones and handling process explicitly instead of relying on color or shelf position alone.
This article does not prescribe infection-control practice. Responsible healthcare and technical teams must set and approve the applicable process.
Build a Configured Sample Acceptance Plan
Equipment and interface checks
- Every listed device matches the approved drawing position.
- Platforms, holes, fasteners and retention features match the revision.
- Controls, ports, vents and service panels remain accessible.
- Equipment can be installed and removed in the agreed sequence.
Cable and service checks
- Connectors can be inserted and removed without unintended interference.
- Cable routes avoid visible pinch, abrasion and caster conflicts.
- Agreed service items can be accessed.
- Replacement paths match the approved service plan.
Workflow and route checks
- Required equipment and accessories are reachable in intended positions.
- Monitor movement stays within the agreed envelope.
- Handles and brakes are accessible.
- The configured sample can be evaluated on the real or representative route.
Cleaning, labeling and packaging checks
- Intended cart surfaces can be reached during the disclosed cleaning process.
- Labels, manuals and configuration records match the approved revision.
- Separately packed accessories are identified.
- Packaging protects the approved shipping configuration.
The project owner should define loads, methods and pass/fail criteria. Do not infer a test result, certification, device compatibility or clinical outcome that has not been verified for the final system.

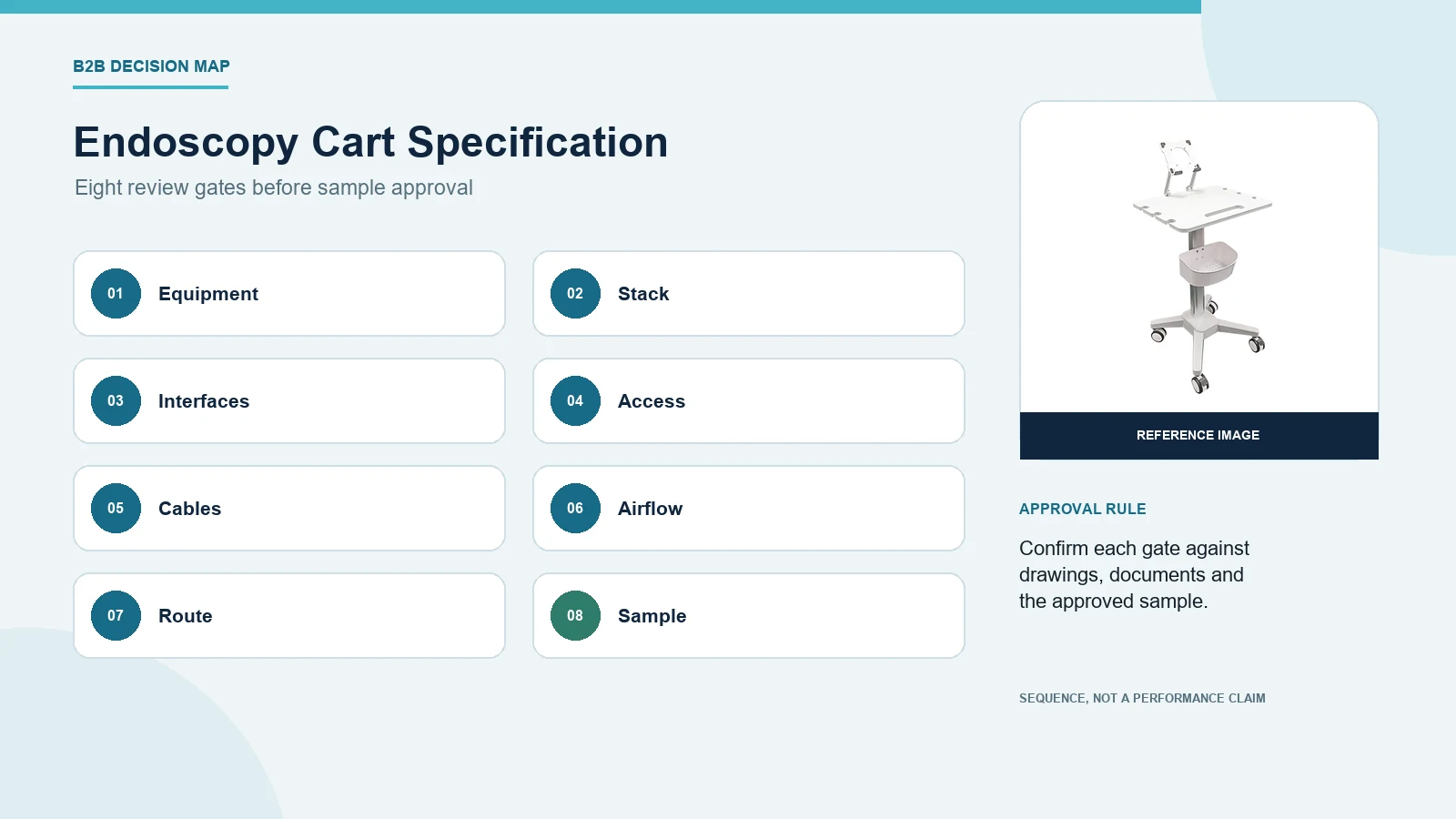

Endoscopy Medical Cart RFQ Checklist
Send the following with the inquiry:
- Intended application and operating workflow.
- Equipment manufacturer, model and controlled drawing revision for every item.
- Dimensions, mass and installed position of each device and accessory.
- Mounting interfaces, contact surfaces, fasteners and tolerances.
- Controls, ports, ventilation and service clearances.
- Shelf count, usable shelf dimensions and retention requirements.
- Monitor model, interface, adjustment and transport state.
- Complete cable schedule and connector dimensions.
- Power-component list and responsible integration party.
- Overall envelope and storage limits.
- Doorway, elevator, threshold, ramp and turning constraints.
- Caster, brake, handle and bumper requirements.
- Cleaning agents and process.
- Target market and buyer-required documents or verification.
- Prototype, pilot and forecast quantities.
- Branding, labels, manuals and packaging needs.
- Sample acceptance criteria and approval owners.
Common Specification Mistakes
Copying a competitor’s photograph
A photograph cannot define dimensions, interfaces, permitted use or rights. Build the specification from controlled equipment data and CRF’s own product evidence.
Adding equipment after the structure is frozen
A late monitor, printer, basket or power component can change clearances, cable routes and the configured load arrangement. Include all project items before approval.
Ignoring connector and service space
The enclosure may fit while connectors, filters or opened panels do not. Use functional envelopes.
Treating the cart as a complete medical system
A cart can support approved equipment, but system validation, clinical use, cleaning and readiness remain with responsible parties and applicable device instructions.
FAQ
What information does an endoscopy cart manufacturer need?
Provide the complete equipment schedule, controlled drawings, dimensions, mass, interfaces, controls, ports, ventilation, cables, accessories, route, cleaning process, quantities, destination and acceptance requirements.
Can one cart support different endoscopy systems?
Possibly, but only when the supported equipment, interface, envelope and load ranges are defined. Each approved configuration should be reviewed rather than assuming interchangeability.
How many shelves should an endoscopy medical cart have?
There is no universal count. The number and usable dimensions should follow the verified equipment stack, access sequence, ventilation, cable and service requirements.
Is a four-caster base always suitable?
No. CRF has a four-caster reference product, but the final base and casters must be reviewed against the configured equipment, route and acceptance plan.
Can CRF customize an endoscopy medical cart?
CRF accepts OEM/ODM inquiries. Feasibility depends on the equipment interfaces, configured arrangement, quantities, target market, documentation and verification requirements. Final details belong in approved drawings and the quotation.
Request an OEM Configuration Review
Send CRF the endoscopy equipment schedule, drawings, interface data, cable map, route constraints, cleaning process, target market and quantity. CRF can review the inputs, identify missing specification data and prepare a quotation path.
